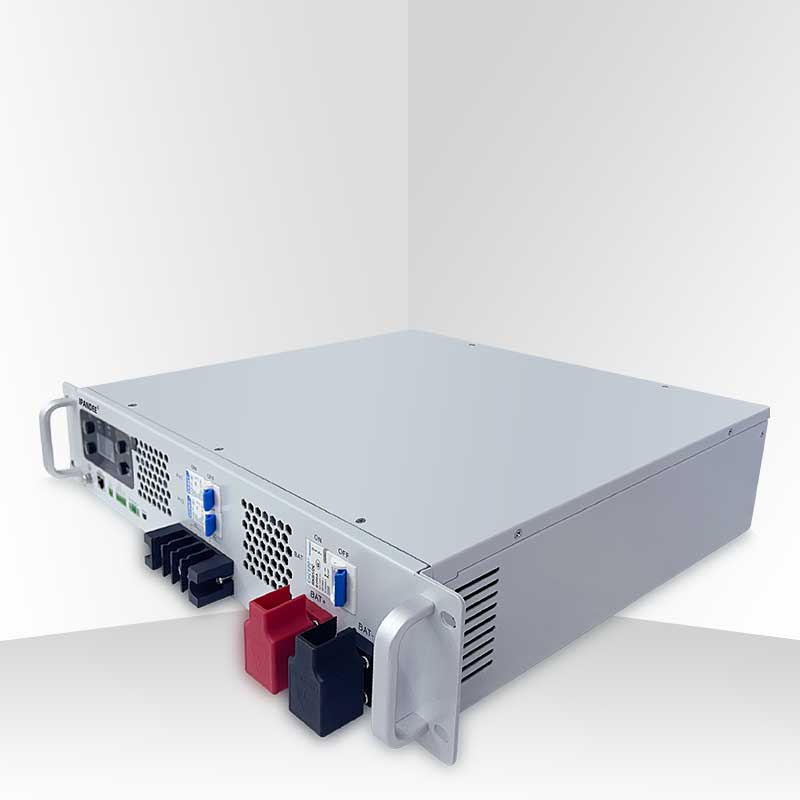

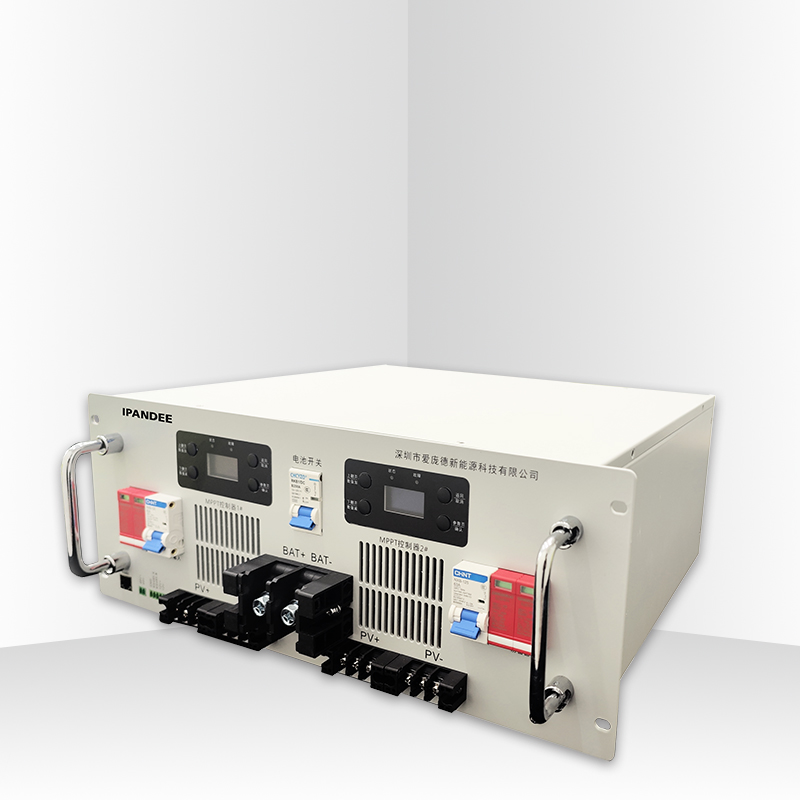

EMPPT48120 series Telecom 48VDC MPPT solar charge controller

  • 004
  • 003
  • 001
  • 02

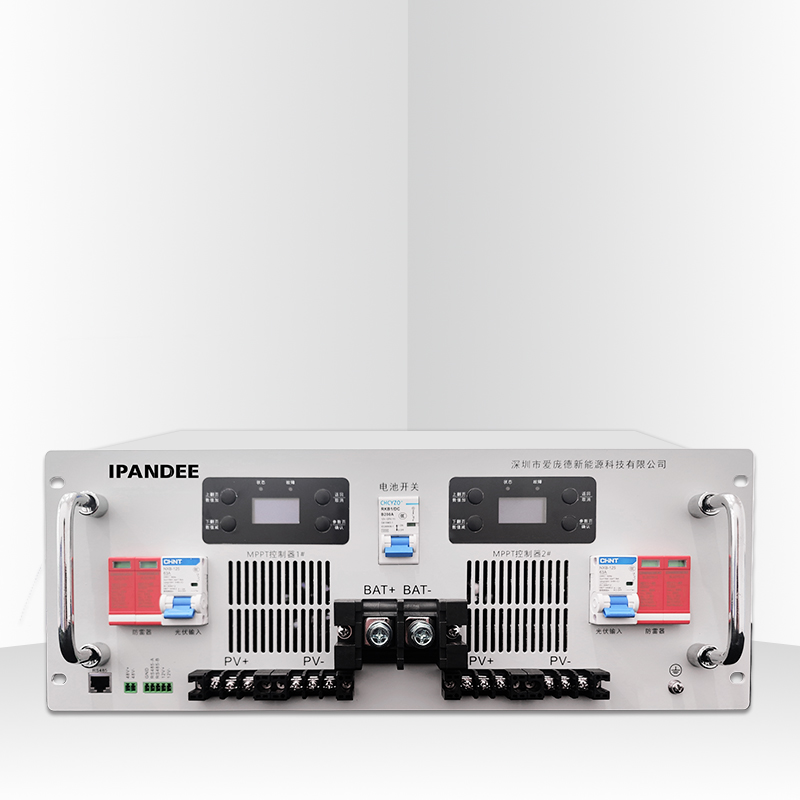

EMMPT48120 series

MPPT solar charge controller

System voltage: 48V

Charge current: 0-120A(adjustable)

Max PV input: 200V (can be customized)

Maximum solar panel power: 6800W

Lithium battery automatic activation function

Protection level: IP21

Support remote control&monitor (PC software and APP)

RS485/MODBUS communication

Rack mounted; Cabnet mounted

4U size

OEM/ODM available, all functions and specifications can be customized.




EMPPT48120 series Telecom 48VDC MPPT solar charge controller

Product modelEMPPT48120
MPPT efficiency≥99%
Input operating voltage range65~200VDC
Input protection voltage200Vdc
Input protection recovery voltage195Vdc
Rated input power6800W
Component accessSupport 6 channels of the same PV module access
Output DC voltage rangeOutput range:-42V~-60VDC(Factory default output:-56VDC)


EMPPT48120 series main features Telecom 48VDC MPPT solar charging controller

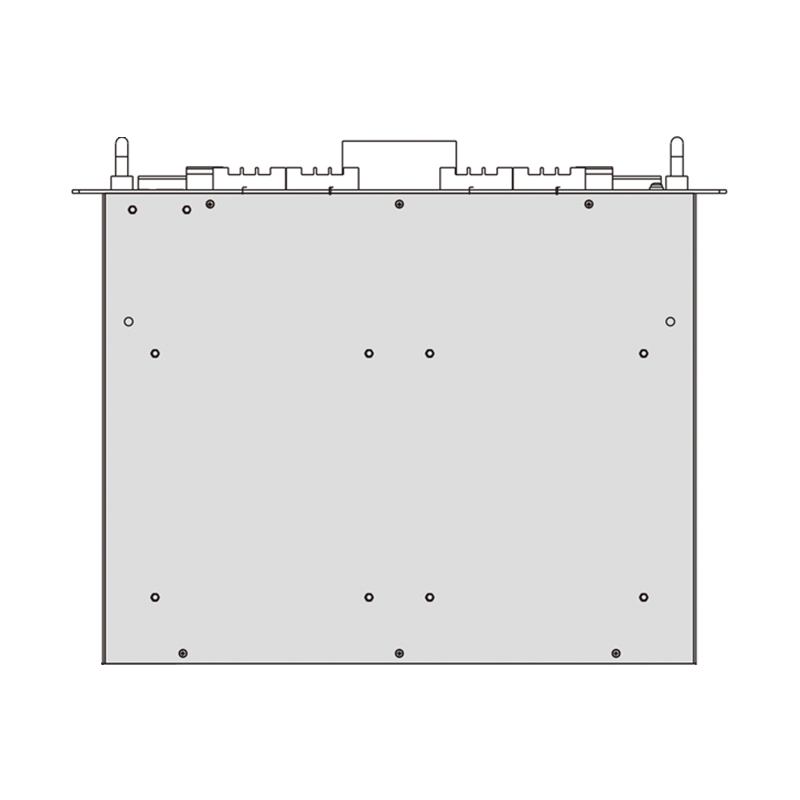

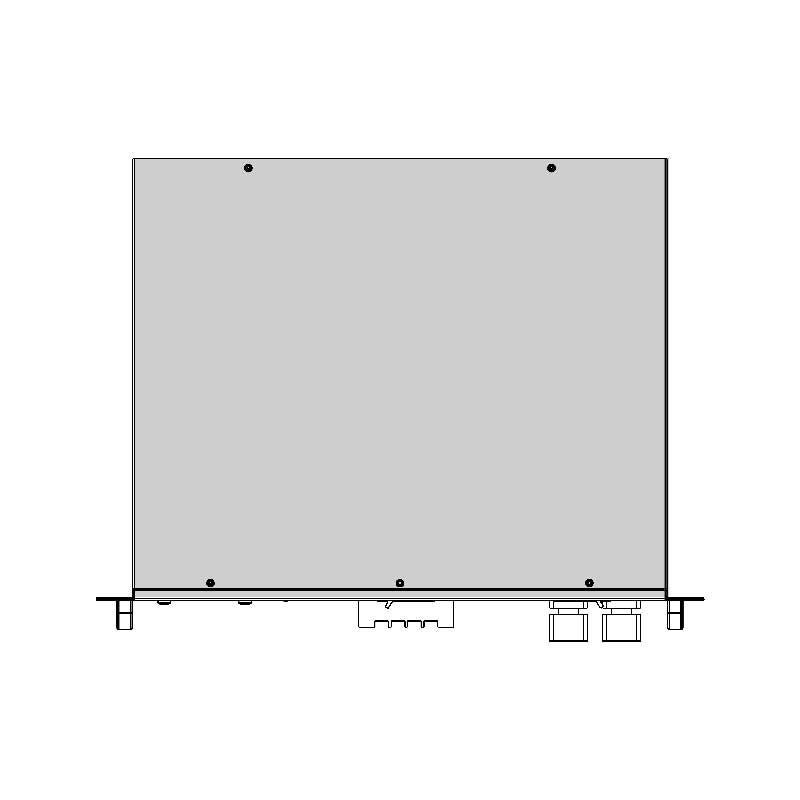

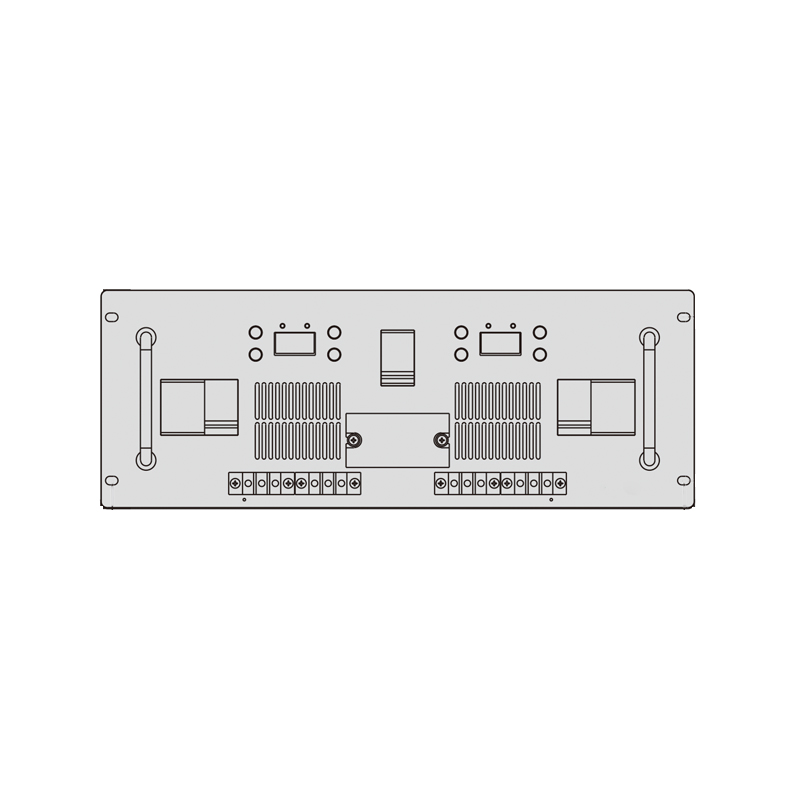

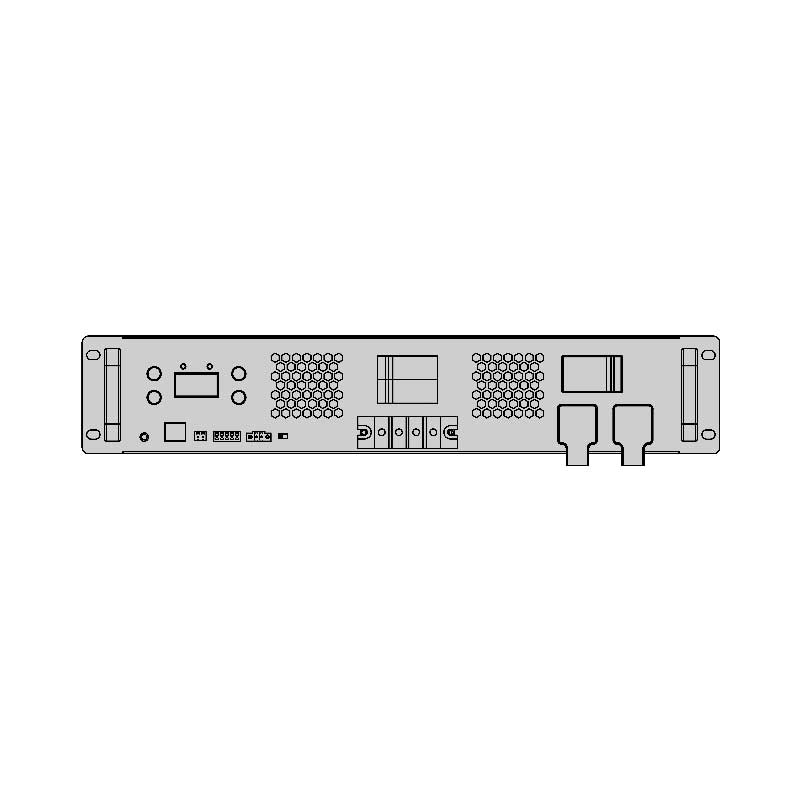

EMPPT48120 series Telecom 48VDC MPPT solar charge controller Technical Drawing

The application of EMPPT48120 series Telecom 48VDC MPPT solar charging controller

  • Macro base station_copy20221228

  • Standalone Solar Power System_copy20221228

  • Photovoltaic superimposed power system_copy20221228

  • Solar-commercial power/oil-engine complementary power supply system_copy20221228

Macro base station_copy20221228

Macro base station_copy20221228

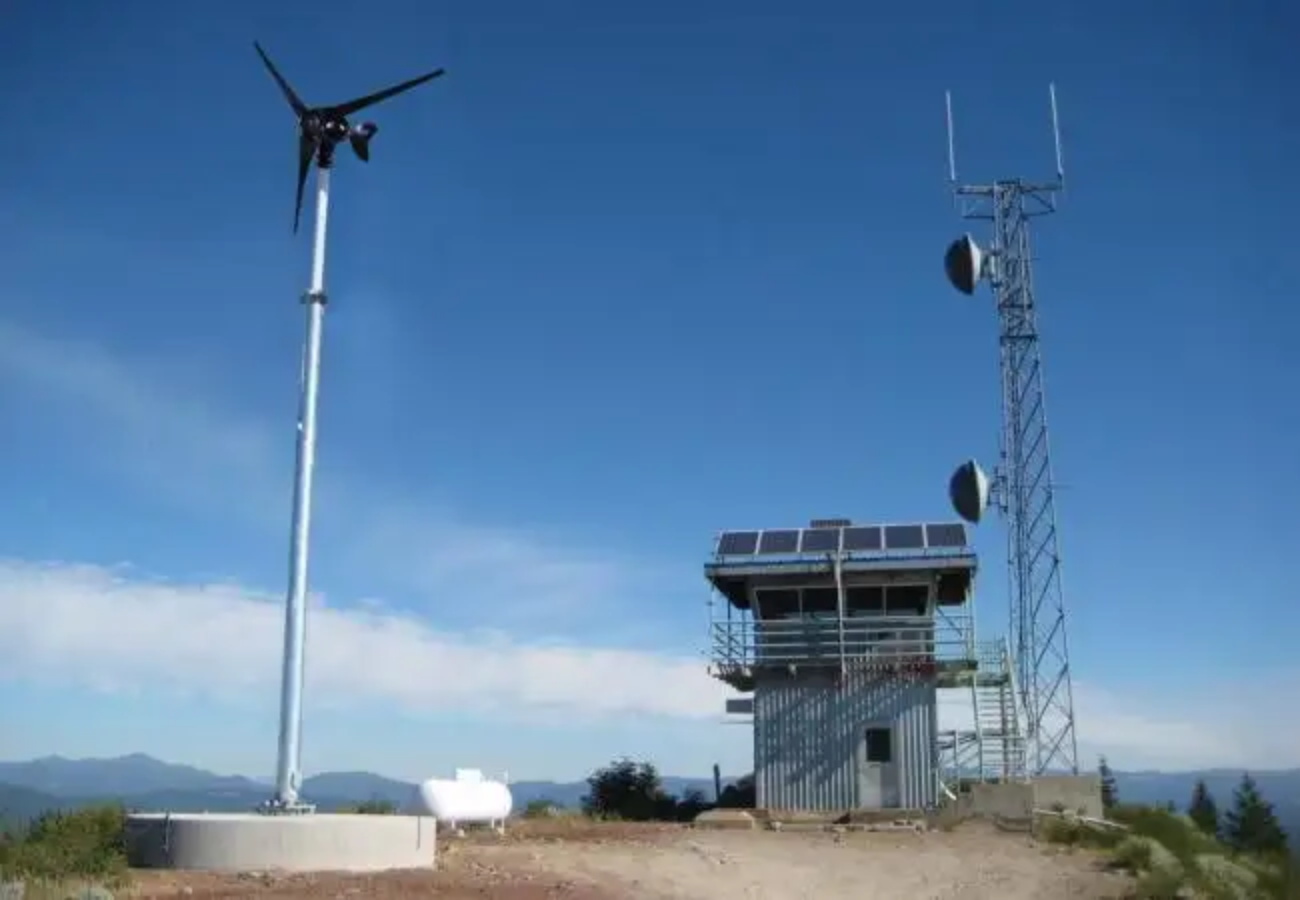

Macro base station, micro base station, 4G, 5G base station, etc.

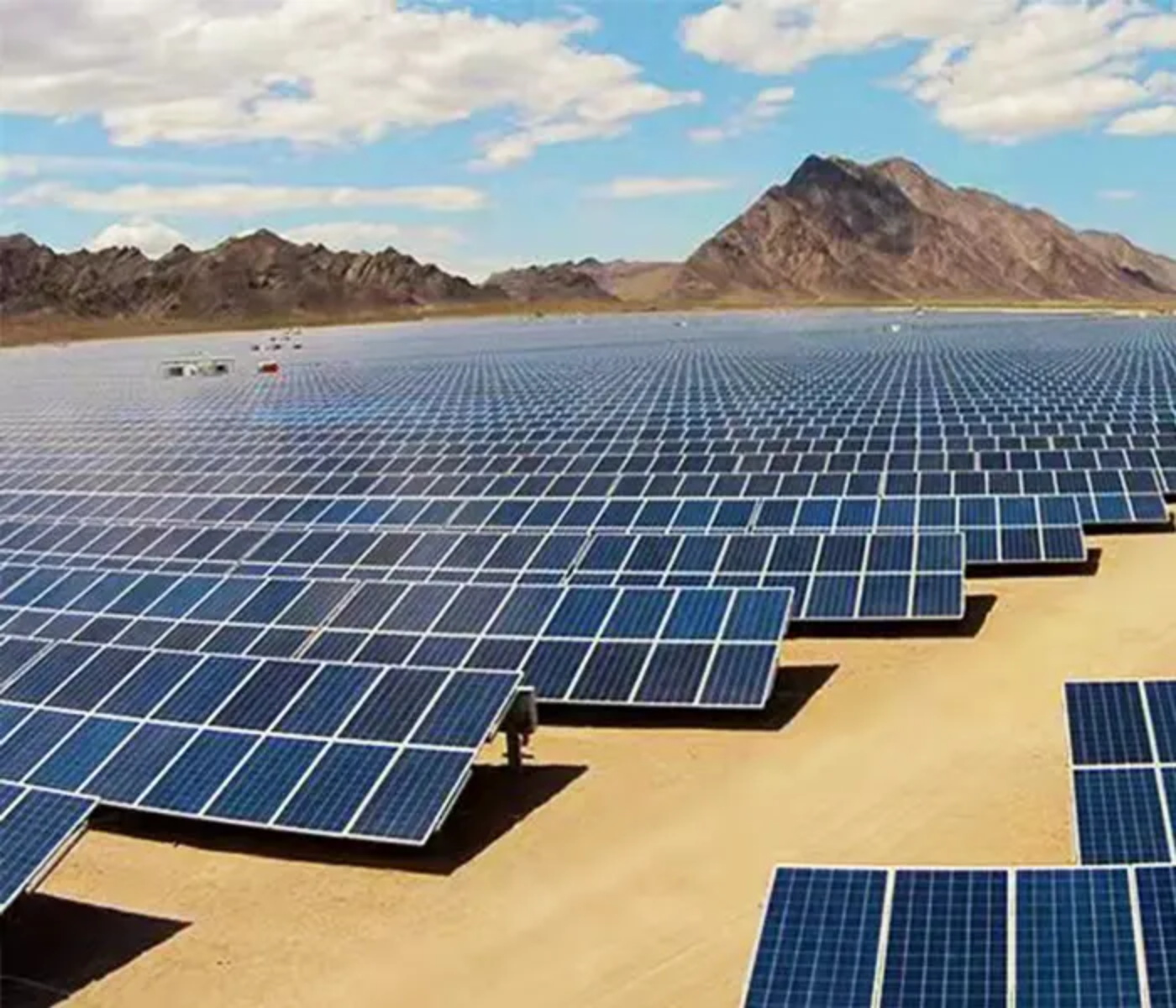

Standalone Solar Power System_copy20221228

Standalone Solar Power System_copy20221228

Standalone Solar Power System

Photovoltaic superimposed power system_copy20221228

Photovoltaic superimposed power system_copy20221228

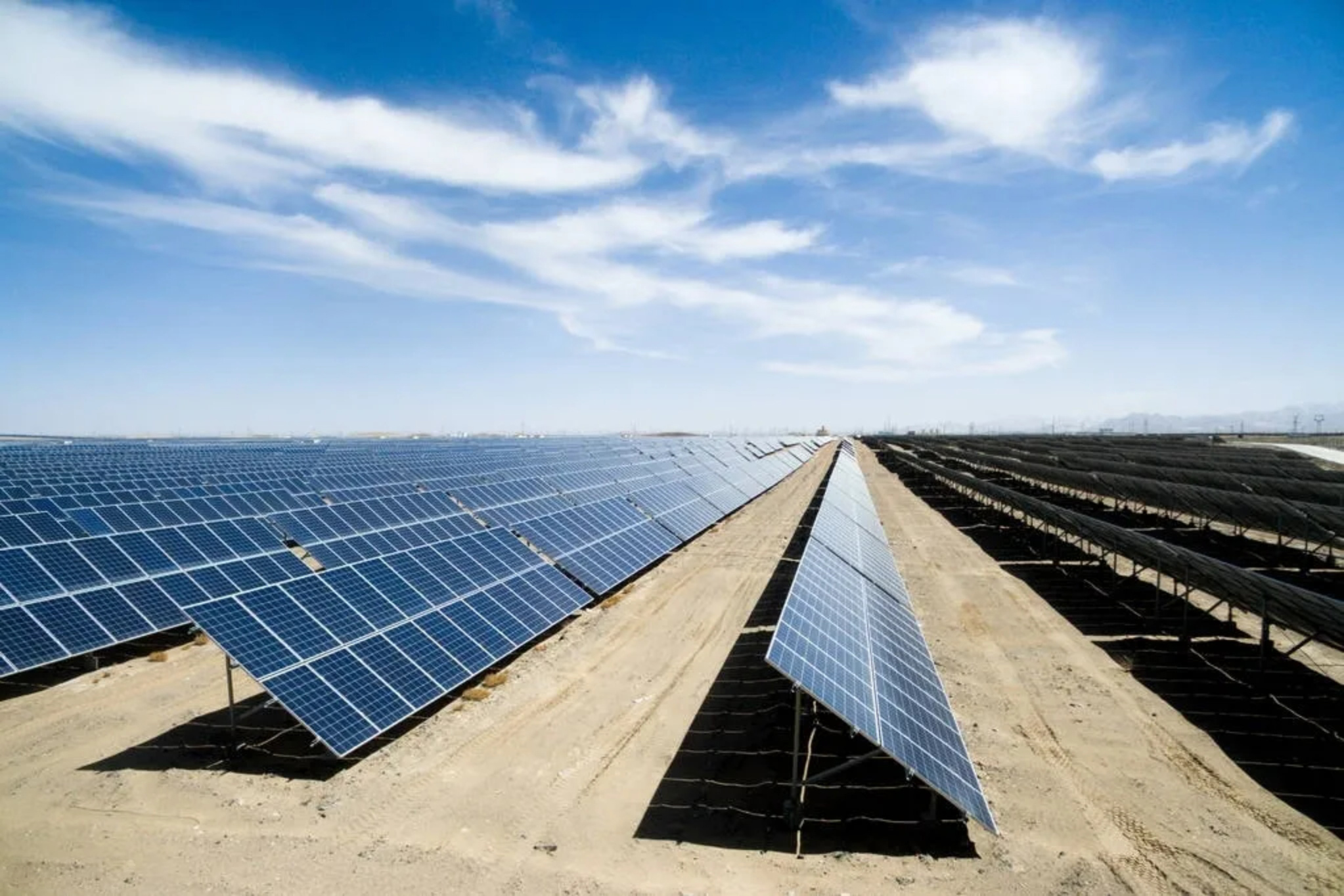

Photovoltaic superimposed power system

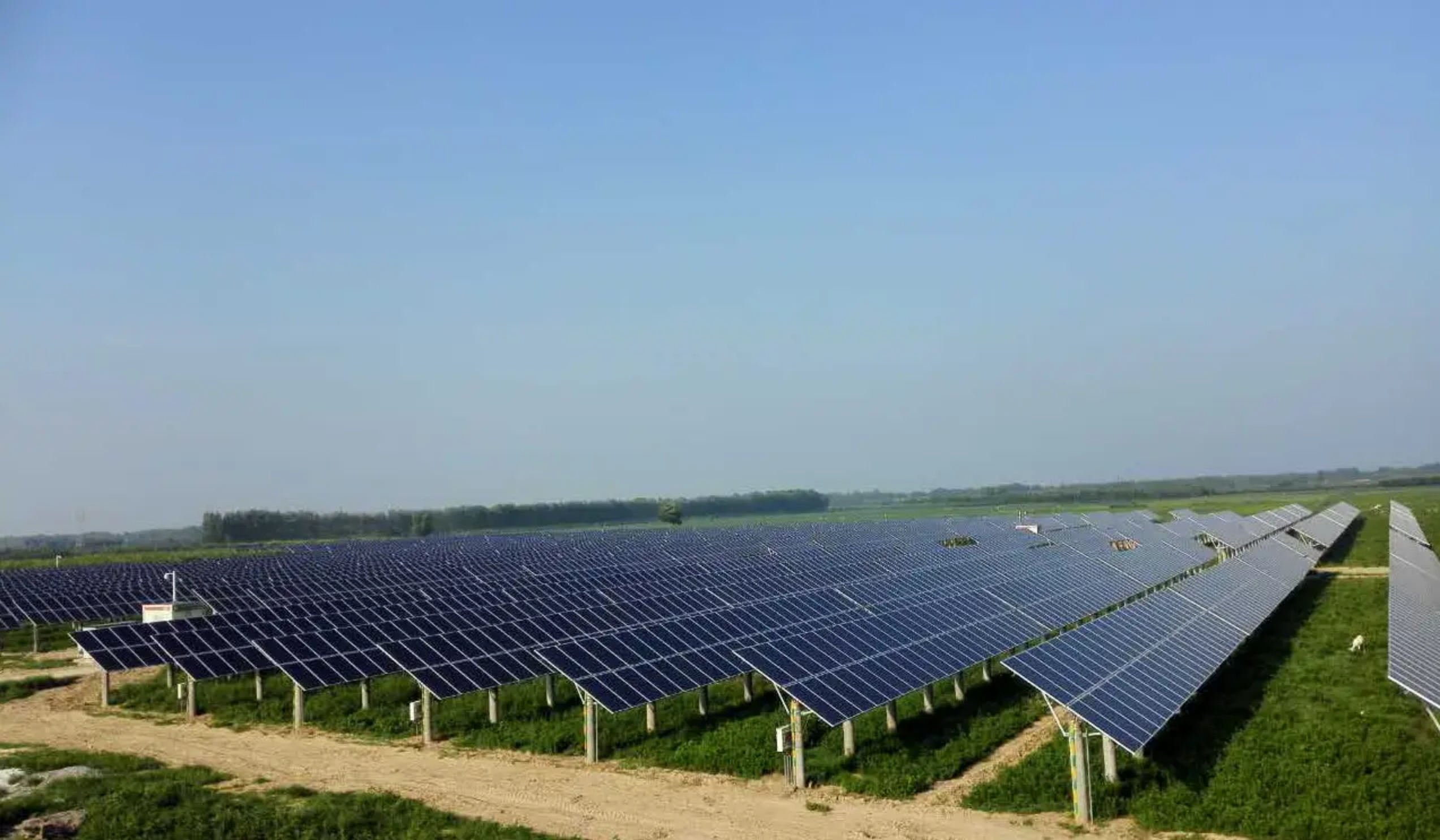

Solar-commercial power/oil-engine complementary power supply system_copy20221228

Solar-commercial power/oil-engine complementary power supply system_copy20221228

Solar-commercial power/oil-engine complementary power supply system
