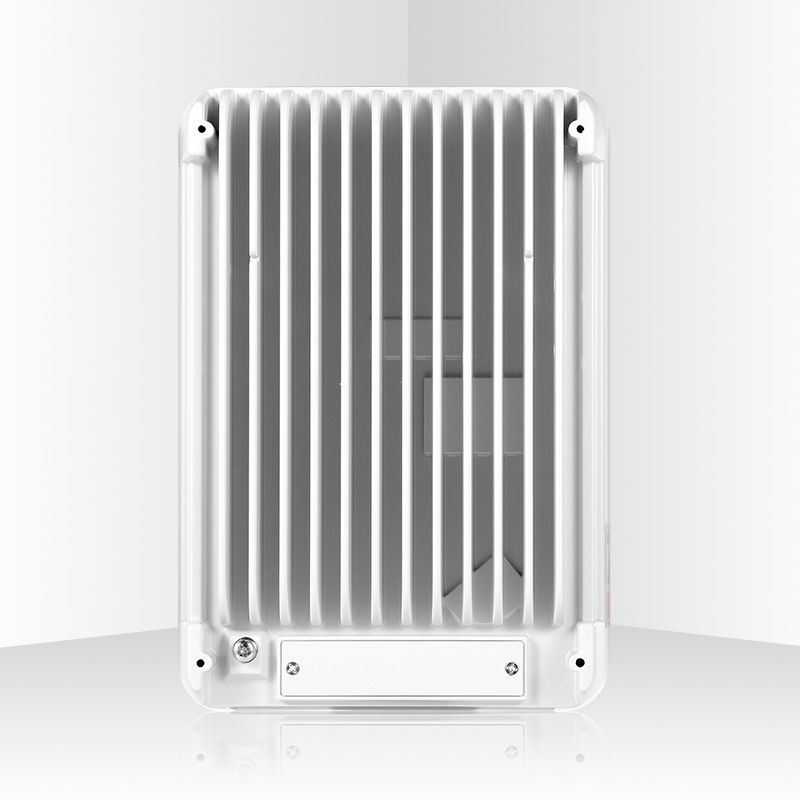

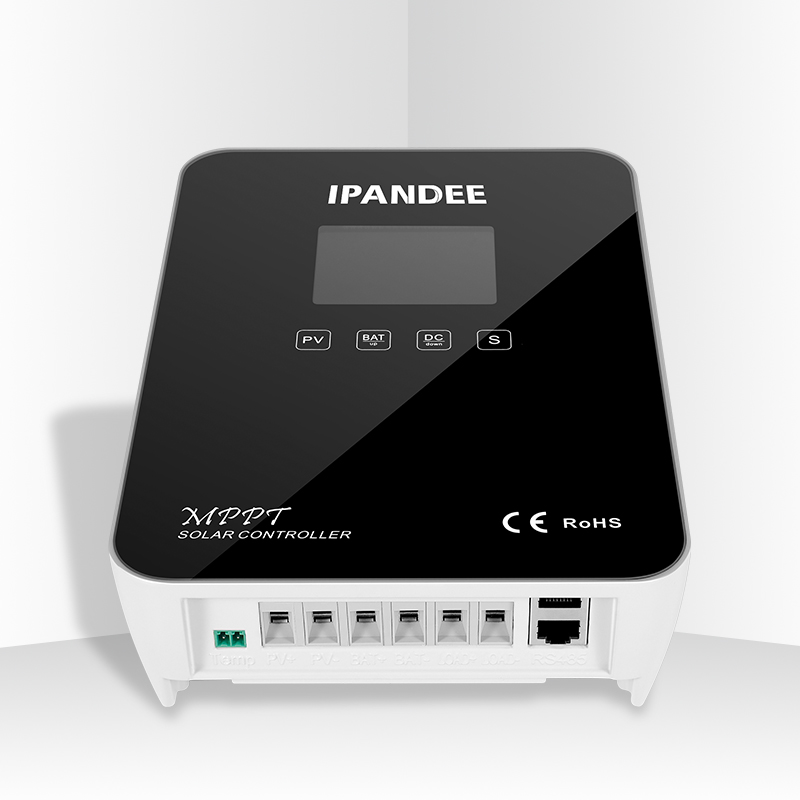

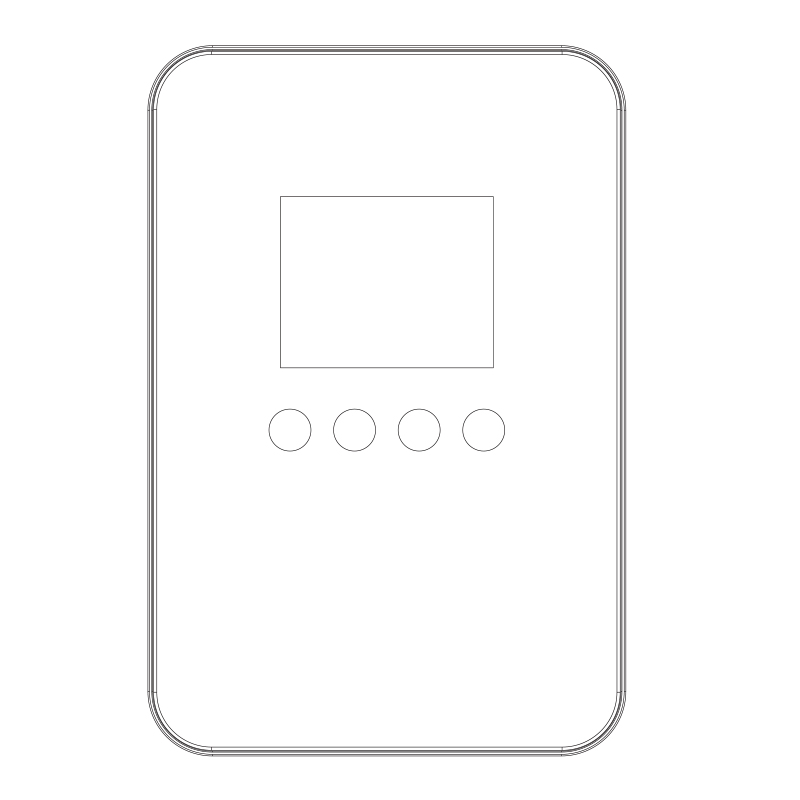

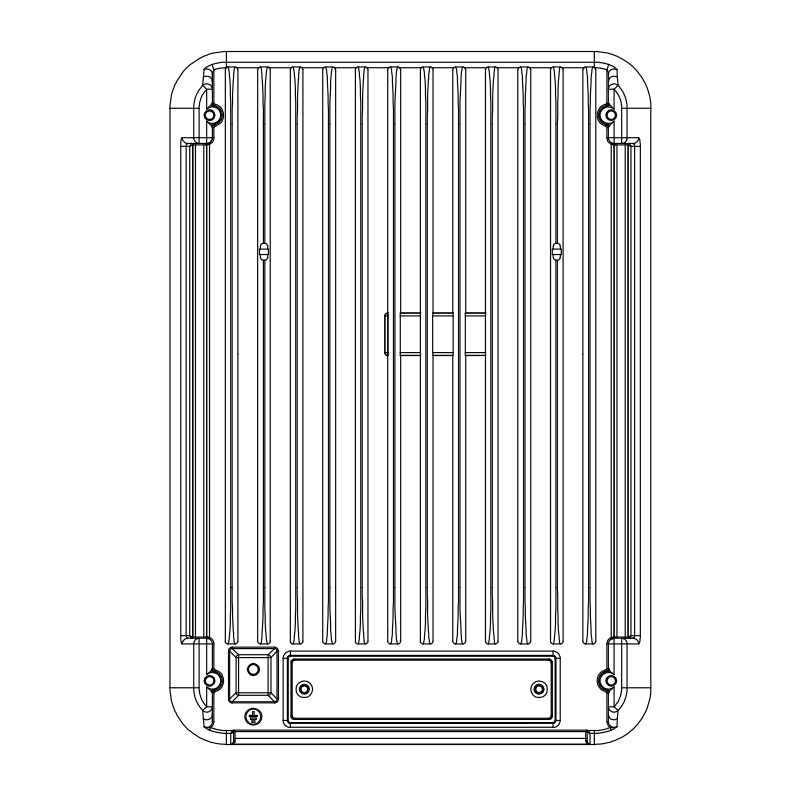

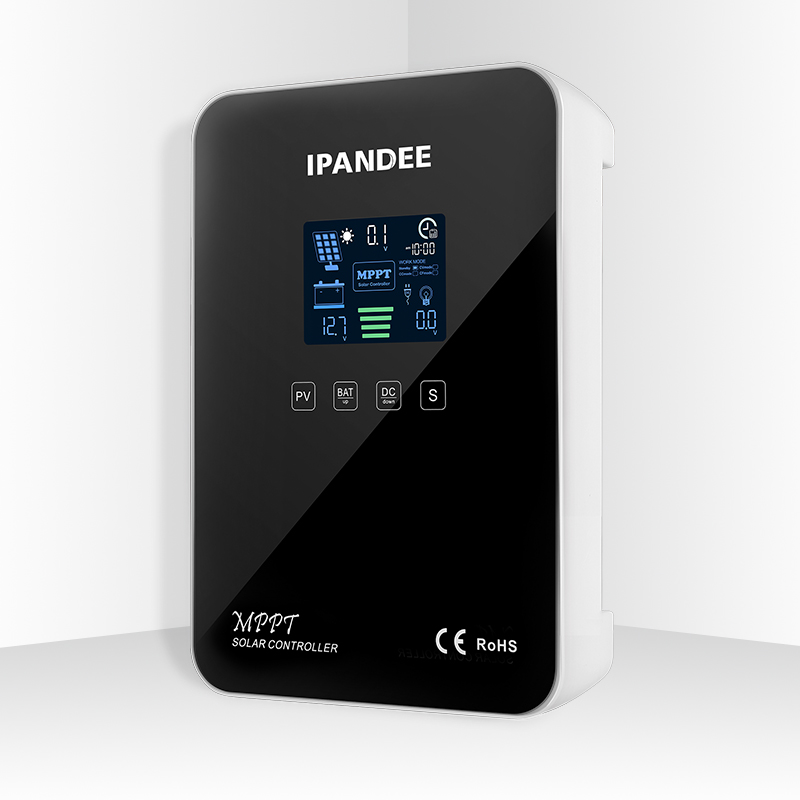

The Explorer-N series
MPPT solar charge controller
System voltage: 12/24V (AUTO)
Charge current: 20A;30A;40A;50A;60A
Max PV input: 100V
Maximum solar panel power: 260W-1680W
Lithium battery automatic activation function
Support remote control&monitor (PC software and APP)

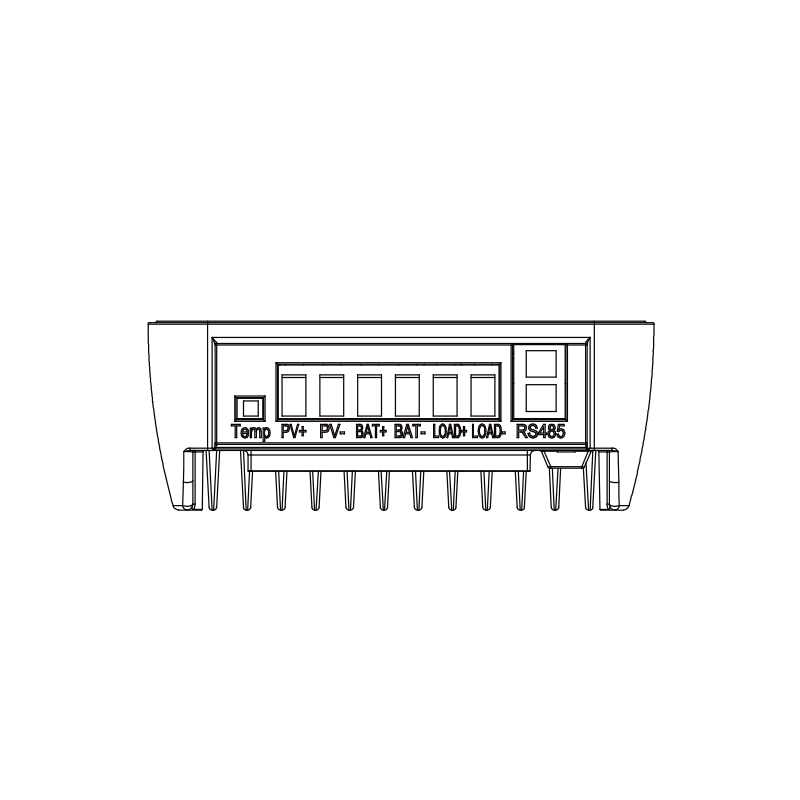

RS485 communication
Suitable for RV, yaht/boat, household
OEM/ODM available, all functions and specifications can be customized.
| Explorer —N Series | EN2420 | EN2430 | EN2440 | EN2450 | EN2460 | EN4820 | EN4830 | |
| Battery system | 12Vsystem : 9VDC~15VDC 24Vsystem : 18VDC~30VDC 36Vsystem : 32VDC~40VDC 48Vsystem : 42VDC~60VDC | |||||||
| Max.PV input voltage(Voc) | 100VDC | 150VDC | ||||||
| Battery types | Sealed(SEL),Gel(GEL),Flooded(FLD),User-defined(USER),Li-ion(LIT) | |||||||
| Rated charge current | 20A | 30A | 40 | 50A | 60A | 20A | 30A | |
| Rated load current | 20A | 30A | 20A | |||||
| IP(Ingress protection) | IP43 | |||||||
The tracking efficiency is as high as 99.5%.
The built-in lithium battery activates the wake-up function.
Support multiple parallel communication, unified integrated monitoring.
It can be customized to charge a variety of batteries (including lithium batteries).
Household
RV
Solar Monitoring System
Base station
Household
The household photovoltaic power generation system can meet the electricity demand in areas without electricity or unstable electricity, and its power level generally ranges from several hundred watts to several kilowatts.
RV
Solar RVs/ships can complement gasoline/diesel power generation by building solar modules and MPPT solar charge controllers, making full use of new energy and reducing electricity costs.
Solar Monitoring System
The solar monitoring system is generally used for road monitoring of urban and rural roads. The intelligent solar charging system can realize the intelligent remote monitoring and management of monitoring equipment and reduce the operation and maintenance cost of the system.
Base station
The use of solar energy systems for base stations and communication stations can not only reduce the overall cost of the system, but also improve the power supply guarantee rate of the system. It can also be applied to the centralized power supply of villages, islands and communication base stations to meet the power demand of the load.
